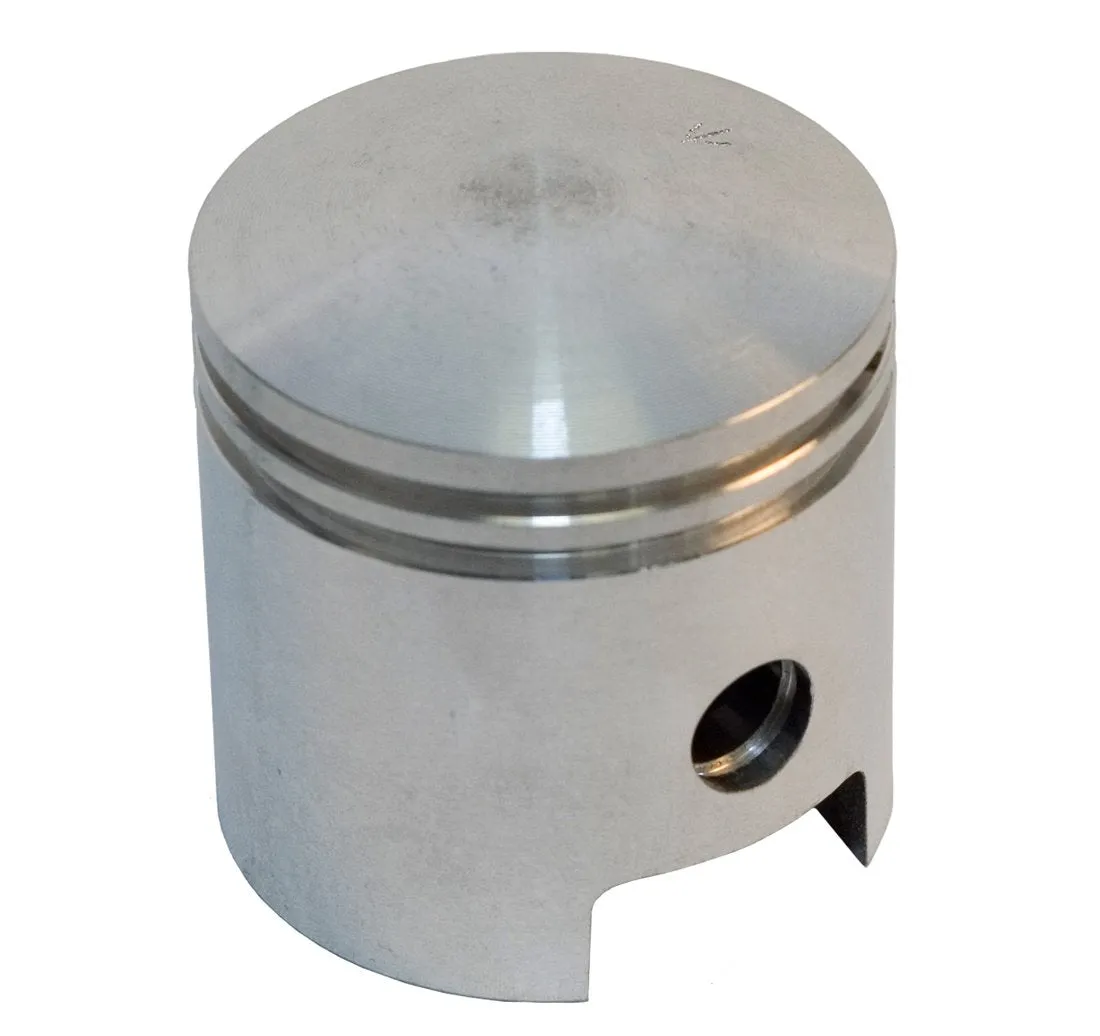

Located within the cylinder body and crankcase, the 2-Stroke Piston #2 is a crucial engine component. Connected to a connecting rod, this part moves in response to engine combustion. This results in crank movement via the transfer of force generated and in turn propels your bike forward. Featuring a 42mm diameter and 5mm skirt, this piston is compatible with a wide variety of 2-stroke engines.

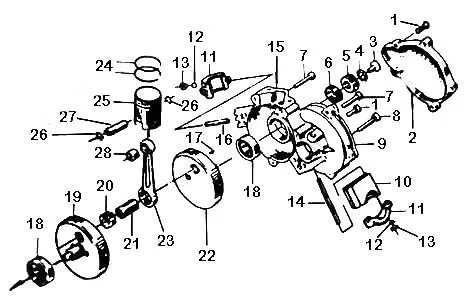

Part #22 On the Crankcase Diagram

Package includes

Only compatible with the Flying Horse Bike Engine Kit*

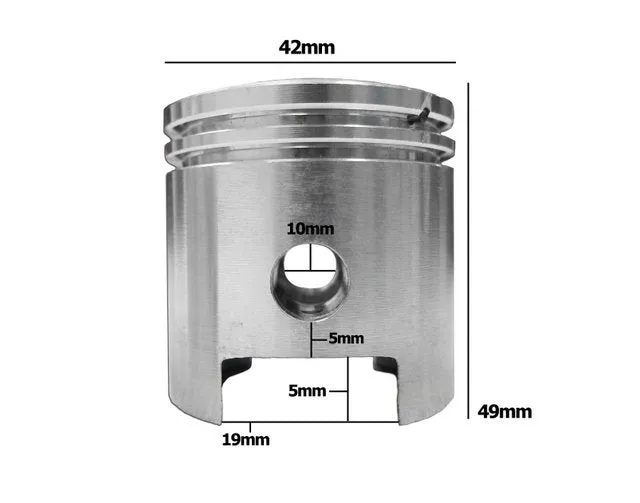

Piston Measurements:
Height: 49mm
Width: 42mm
Skirt Width: 19mm
Skirt Height: 5mm
Piston Pin Port: 5mm
Height from Skirt to Piston Pin: 5mm

*As there are many different pistons for each model of engine, please read the measurements of our pistons and reference your existing piston to ensure a proper fit.
